你的位置：首頁 » 產品中心 » Former(二手)儀器 » 網絡分析儀 » E8364A - 2port PNA Series Network Analyzer

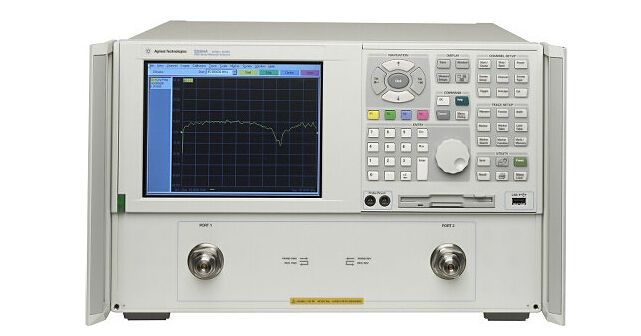

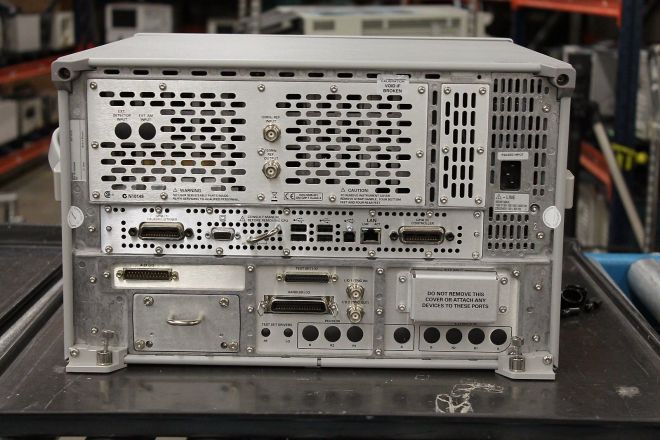

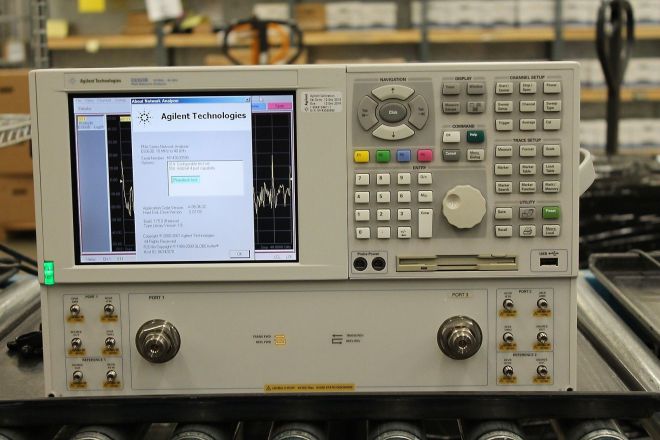

儀器名稱: E8364A - 2port PNA Series Network Analyzer 儀器型號: E8364A - 2port 儀器品牌: Agilent 儀器指標: 2port 45 MHz to 50 GHz
Key Features & Specifications
- PNAs now have 256MB RAM
- 45 MHz to 50 GHz
- 123 dB dynamic range at test port
- 138 dB dynamic range with direct receiver access
- 104 dB dynamic range at the test port at 50 GHz
- < 26 us/point sweep speed
- COM/DCOM and SCPI programming
- TRL/LRM calibration supported
The Agilent E8364A vector network analyzer is discontinued as of June 2003 with an active support life until June 19, 2008. The E8364A has been replaced by the Agilent E8364B PNA Series Network Analyzer, 10 MHz to 50 GHz
The Agilent E8364A vector network analyzer is a member of the PNA Series network analyzer platform and provides the combination of speed and precision for the demanding needs of today's high frequency, high-performance component test requirements. The PNA Series meets these testing challenges by providing the right combination of fast sweep speeds, wide dynamic range, low trace noise and flexible connectivity.
The E8364A provides TRL/LRM calibration (four-receiver enabled) for waveguide, on-wafer, and in-fixture devices. Source attenuators, bias-tees and direct receiver access are optionally available for active device and extended dynamic range measurements.
Powerful automation and self-help tools make the instrument well suited for both R&D and manufacturing. The PNA Series feature sixteen independent measurement channels, built-in hard drive and supplied mouse.
View the PNA Series of MW Network Analyzers product overview and application examples online: PNA Series MW Network Analyzer Video Demos
| 85052B | Standard Mechanical Calibration Kit, DC to 26.5 GHz, 3.5 mm
Standard Mechanical Calibration Kit, DC to 26.5 GHz, 3.5 mm85052B |
| 85053B |
Verification Kit, 3.5 mm85053BThe 85053B verification kit has a 3.5 mm connector and covers a frequency range of 300 kHz to 26.5 GHz. |
| 85056A | Standard Mechanical Calibration Kit, DC to 50 GHz, 2.4 mm
Standard Mechanical Calibration Kit, DC to 50 GHz, 2.4 mm85056A |
| 85056D | Economy Mechanical Calibration Kit, DC to 50 GHz, 2.4 mm
Economy Mechanical Calibration Kit, DC to 50 GHz, 2.4 mm85056D |
| 85057B |
Verification Kit, 2.4 mm85057BThe Agilent 85057B verification kit has a 2.4 mm connector and covers a frequency range of 0.045 to 50 GHz. |
| 85130F | Test Port Adapter Set, 2.4 mm to 3.5 mm
Test Port Adapter Set, 2.4 mm to 3.5 mm85130FThe Agilent 85130F test port set contains a 2.4 mm to PSC-3.5 mm male adapter and a 2.4 mm to PSC-3.5 mm female adapter. |
| 85130G | Test Port Adapter Set, 2.4 mm to 2.4 mm
Test Port Adapter Set, 2.4 mm to 2.4 mm85130GThe Agilent 85130G test port set contains a 2.4 mm to PSC-2.4 mm male adapter and a 2.4 mm to PSC-2.4 mm female adapter. |
| 85133D |
Semi-Rigid Cable Set, 2.4 mm85133DThe 85133D includes two 53 cm (21 in) long semi-rigid cables composed of a 2.4 mm female to precision slotless 2.4 mm female connector and a 2.4 mm female to 2.4 mm male connector. |
